Big Chair Build Plans

$19.90

Sit in The Big Chair and command respect!   More info...

SKU: BPCHR001

Share:

Details

BUILD PLANS ARE AVAILABLE FOR DOWNLOAD THROUGH AN EMAIL LINK AFTER PURCHASING - HARD COPIES ARE NOT INCLUDED

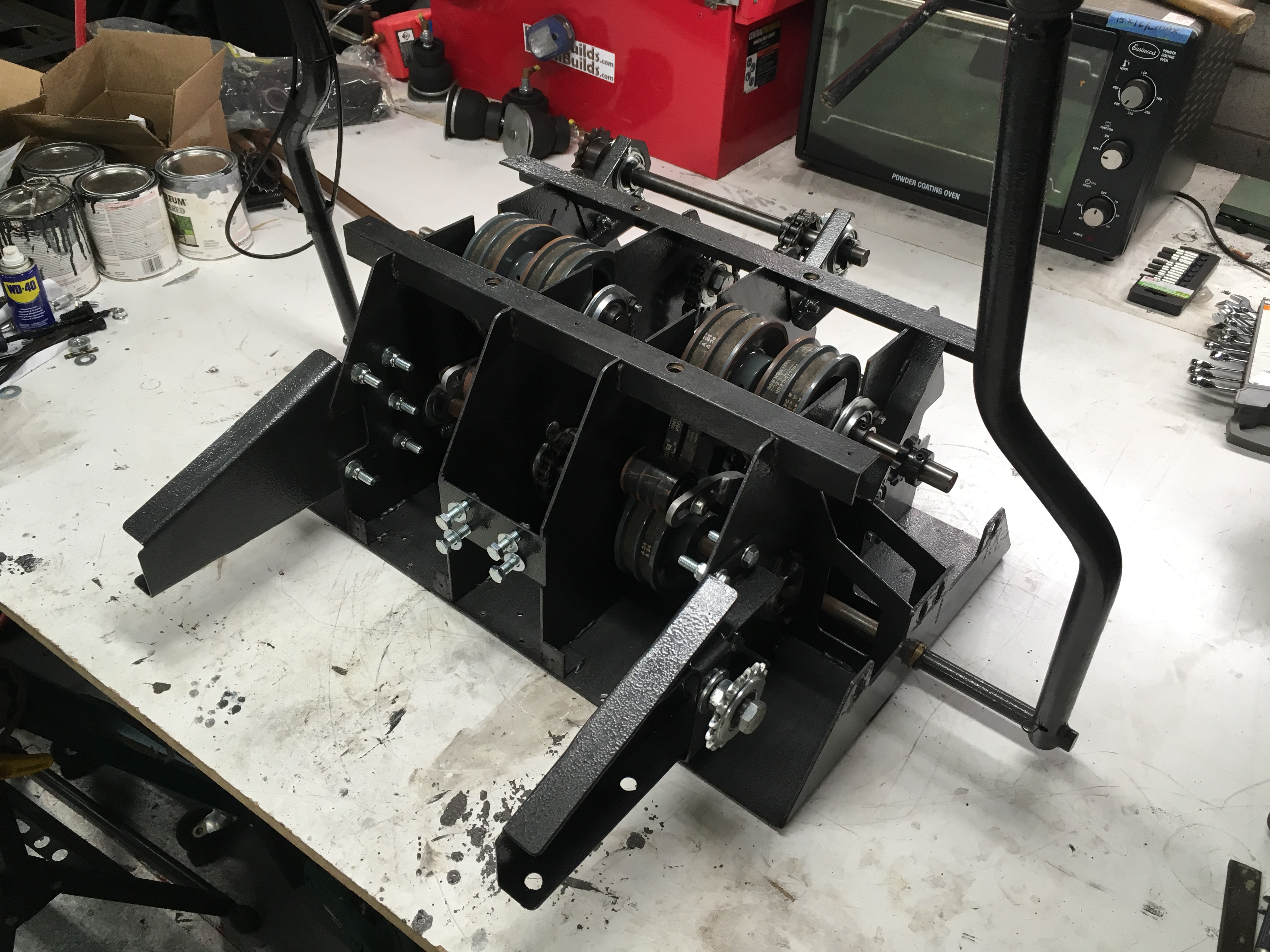

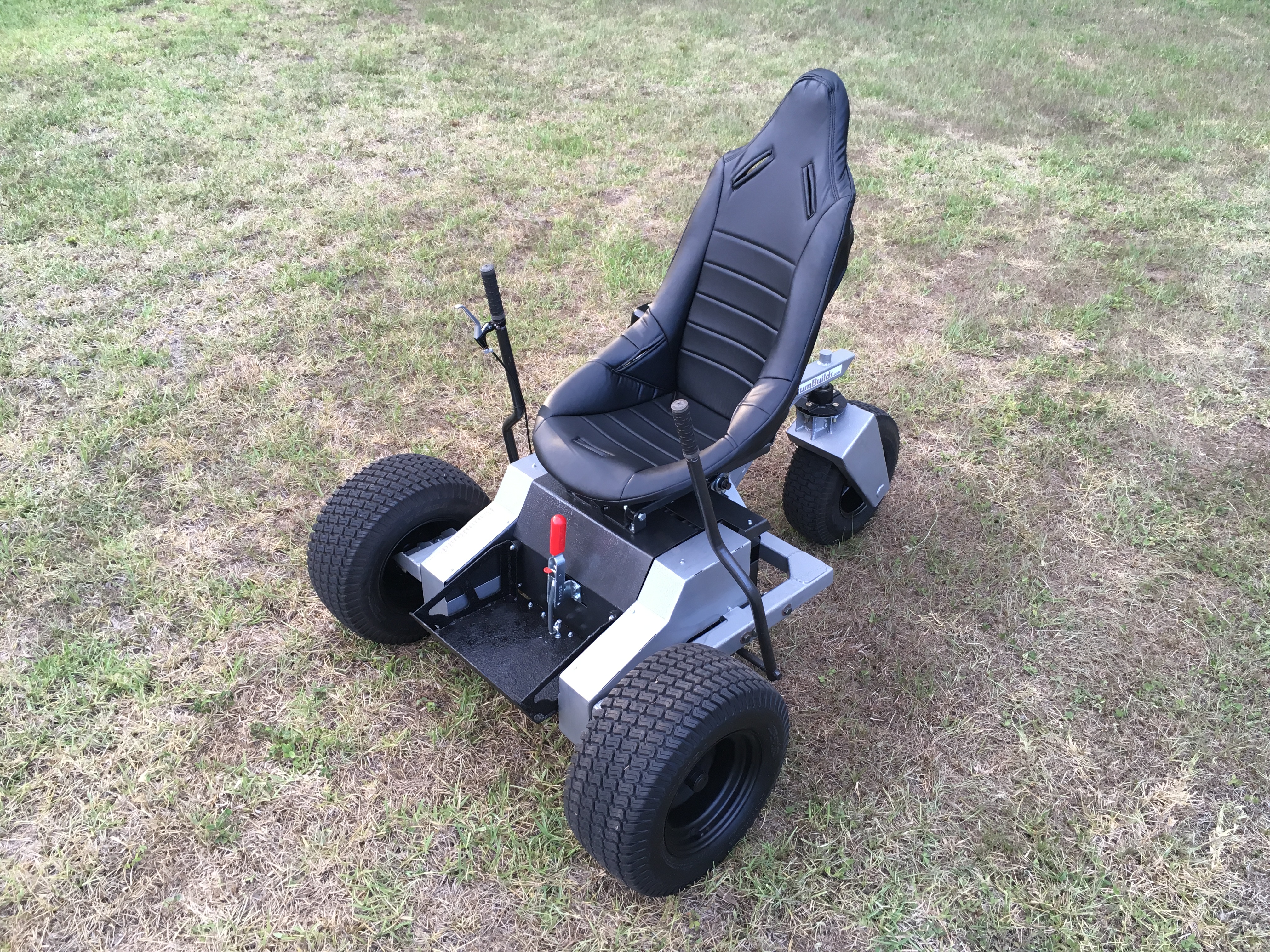

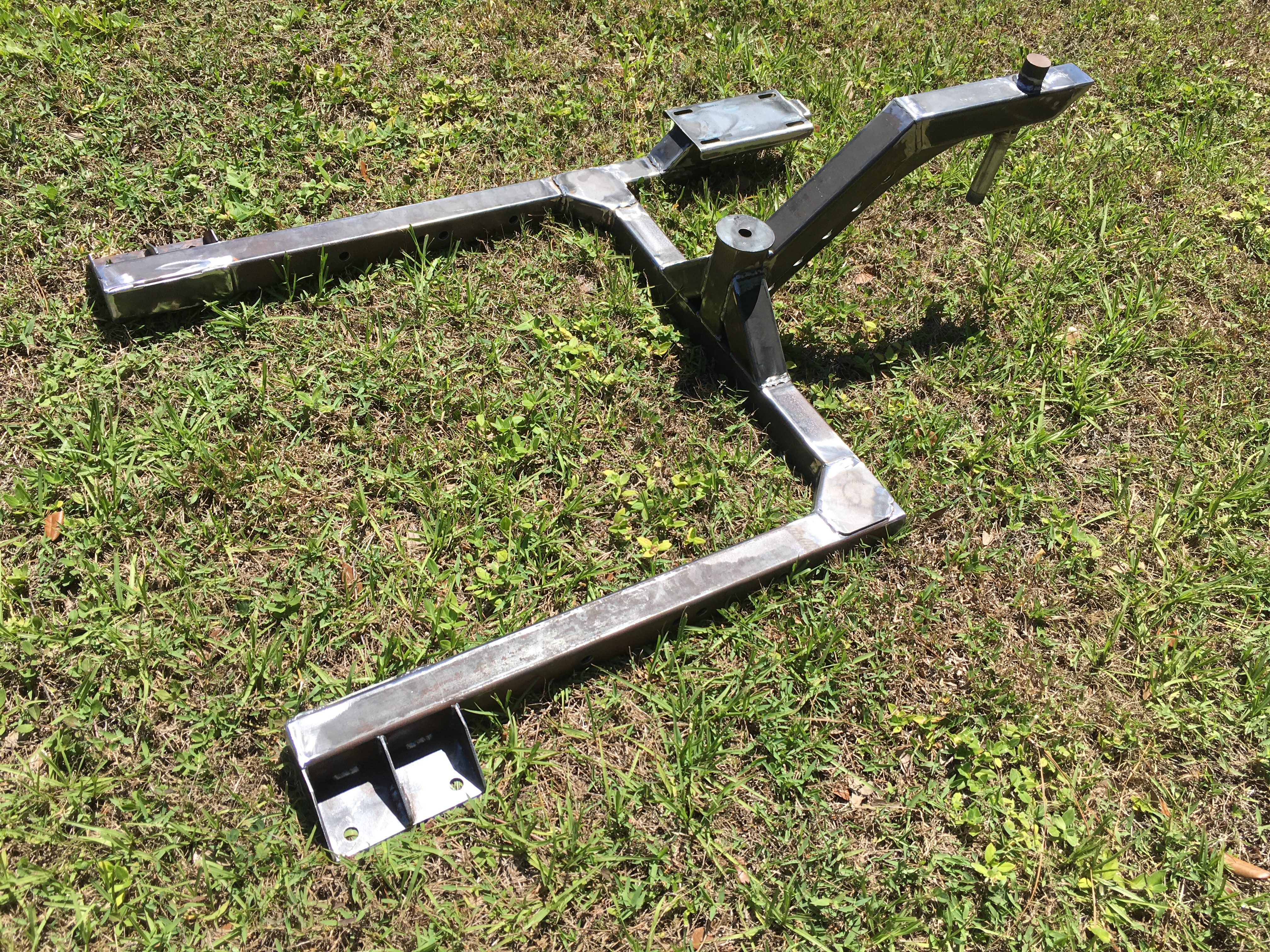

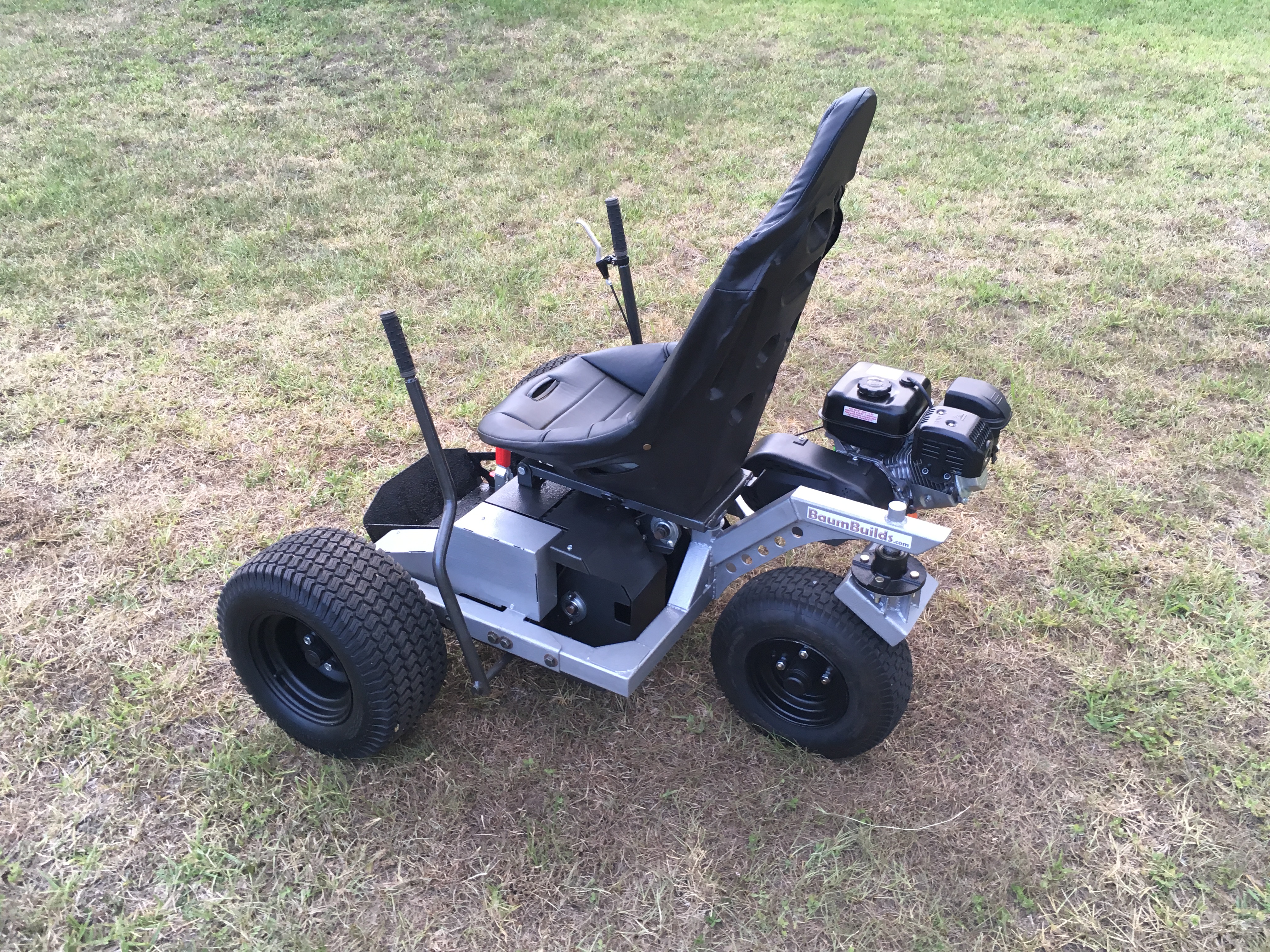

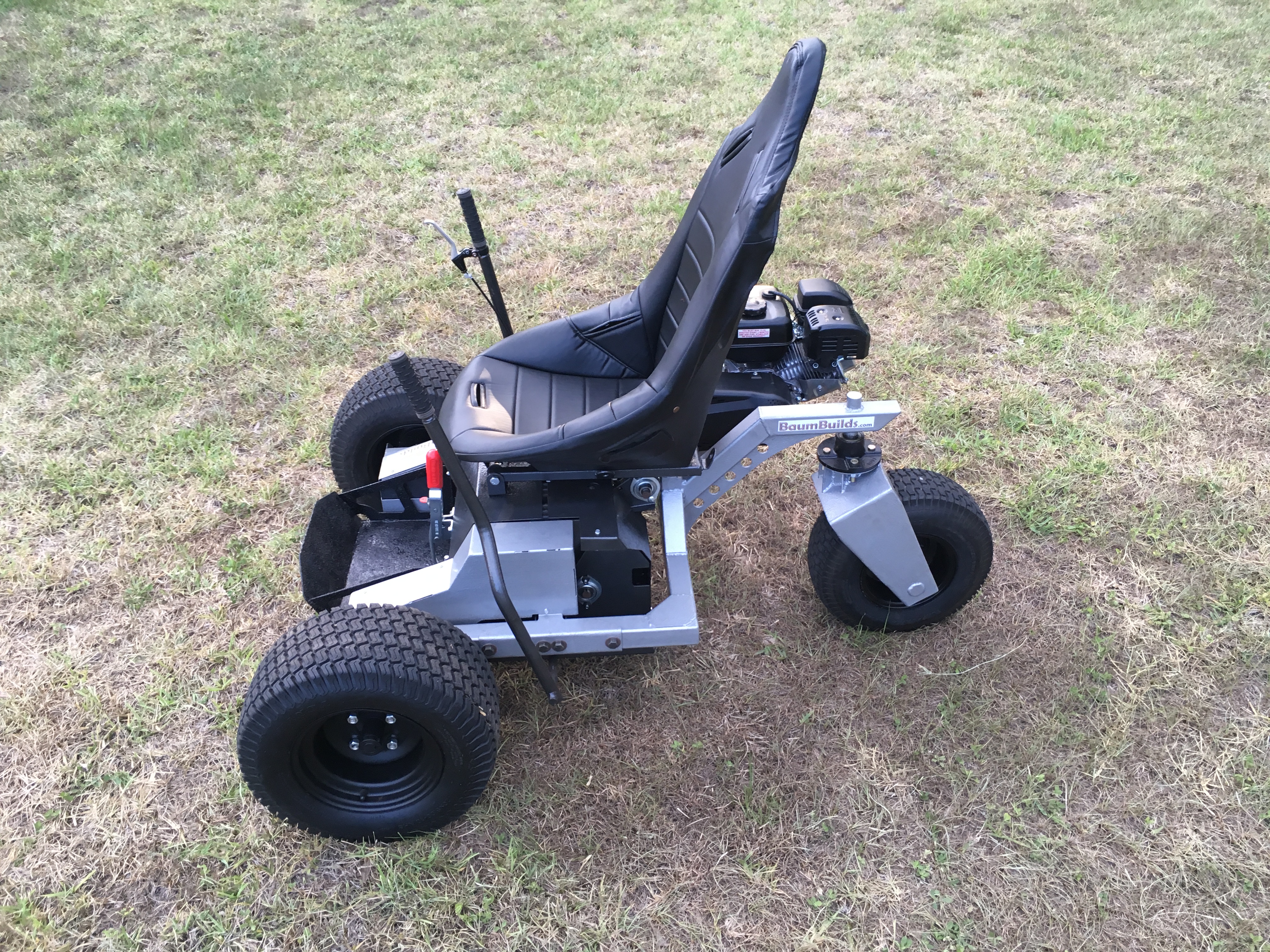

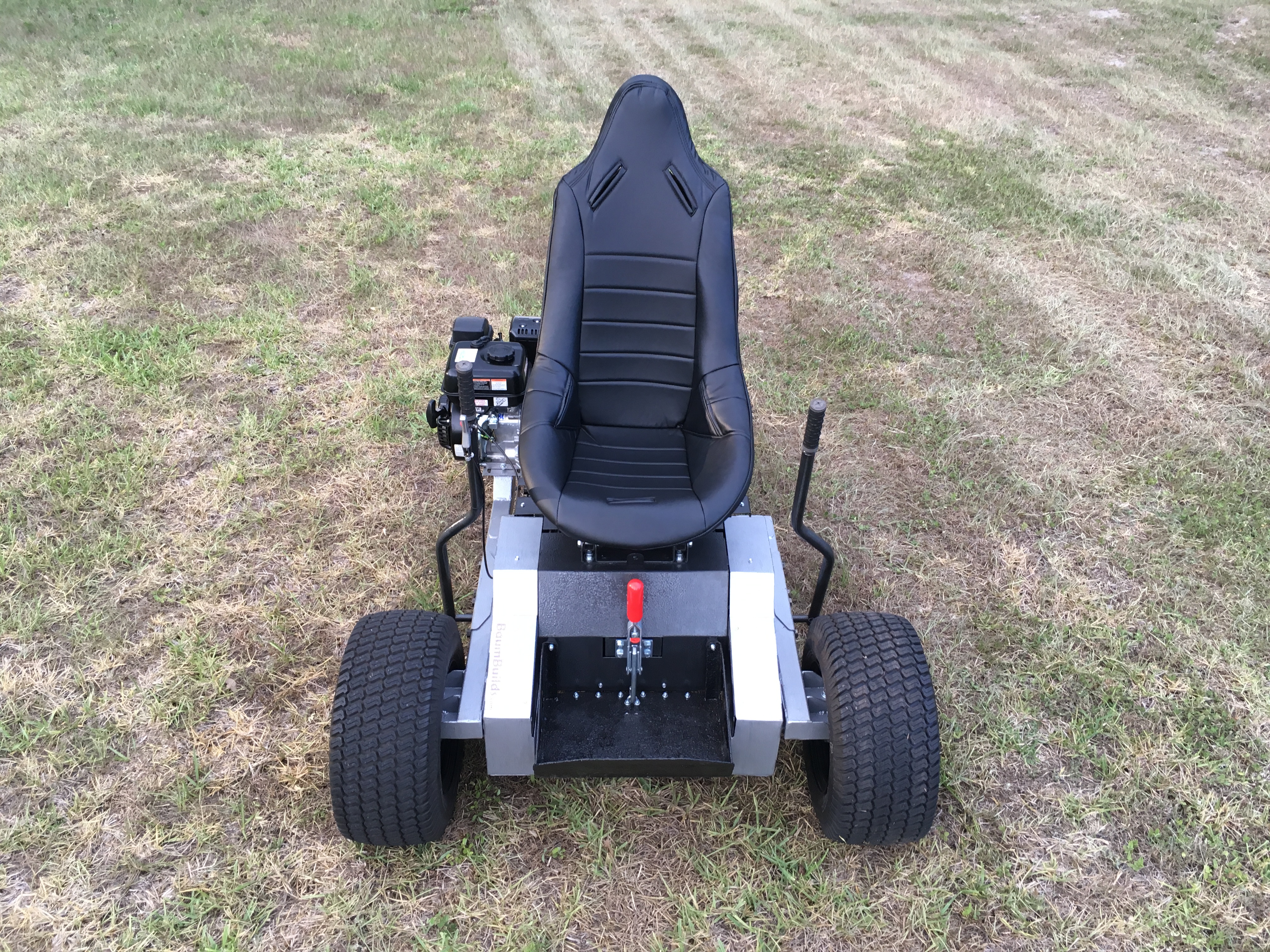

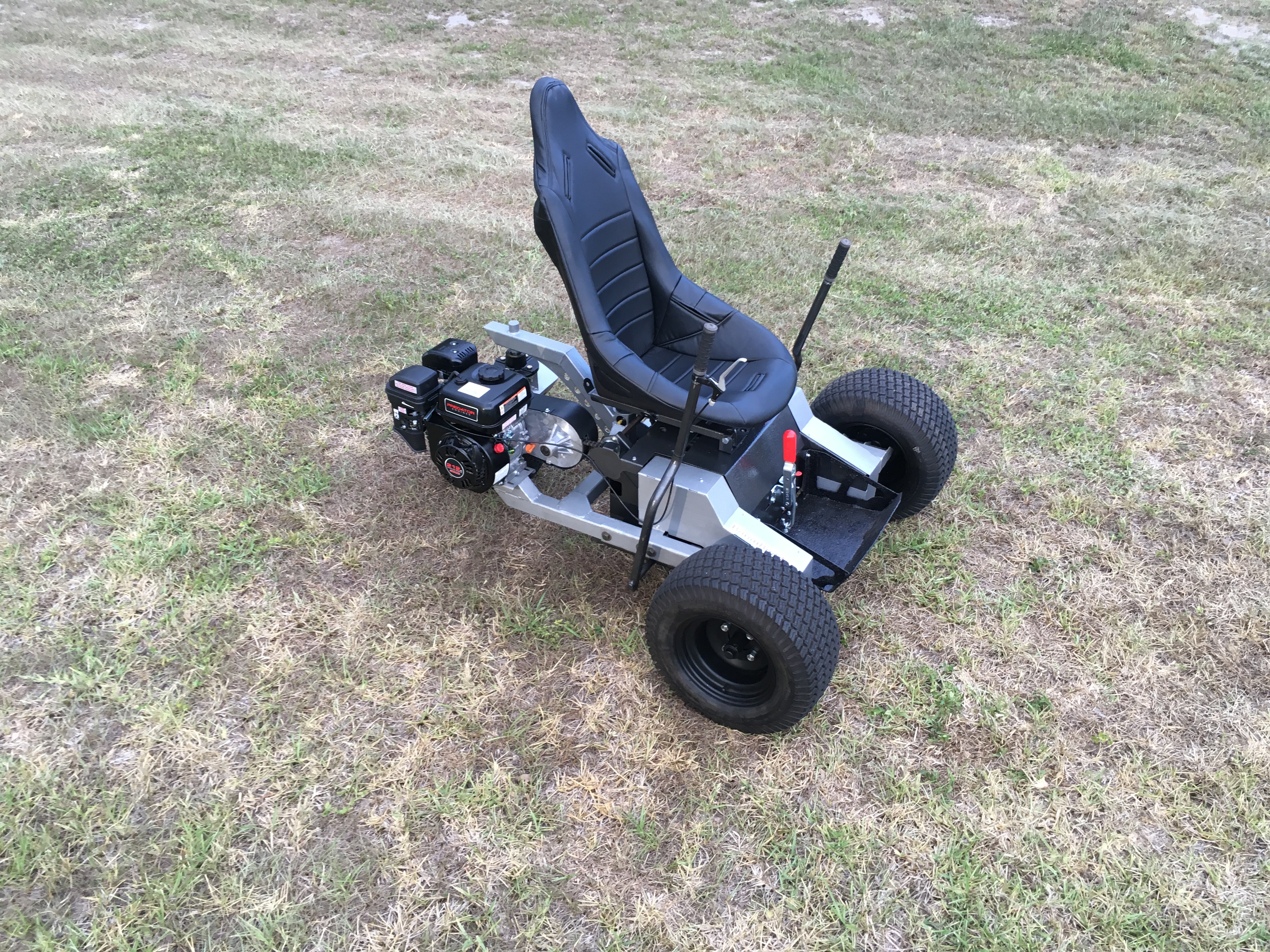

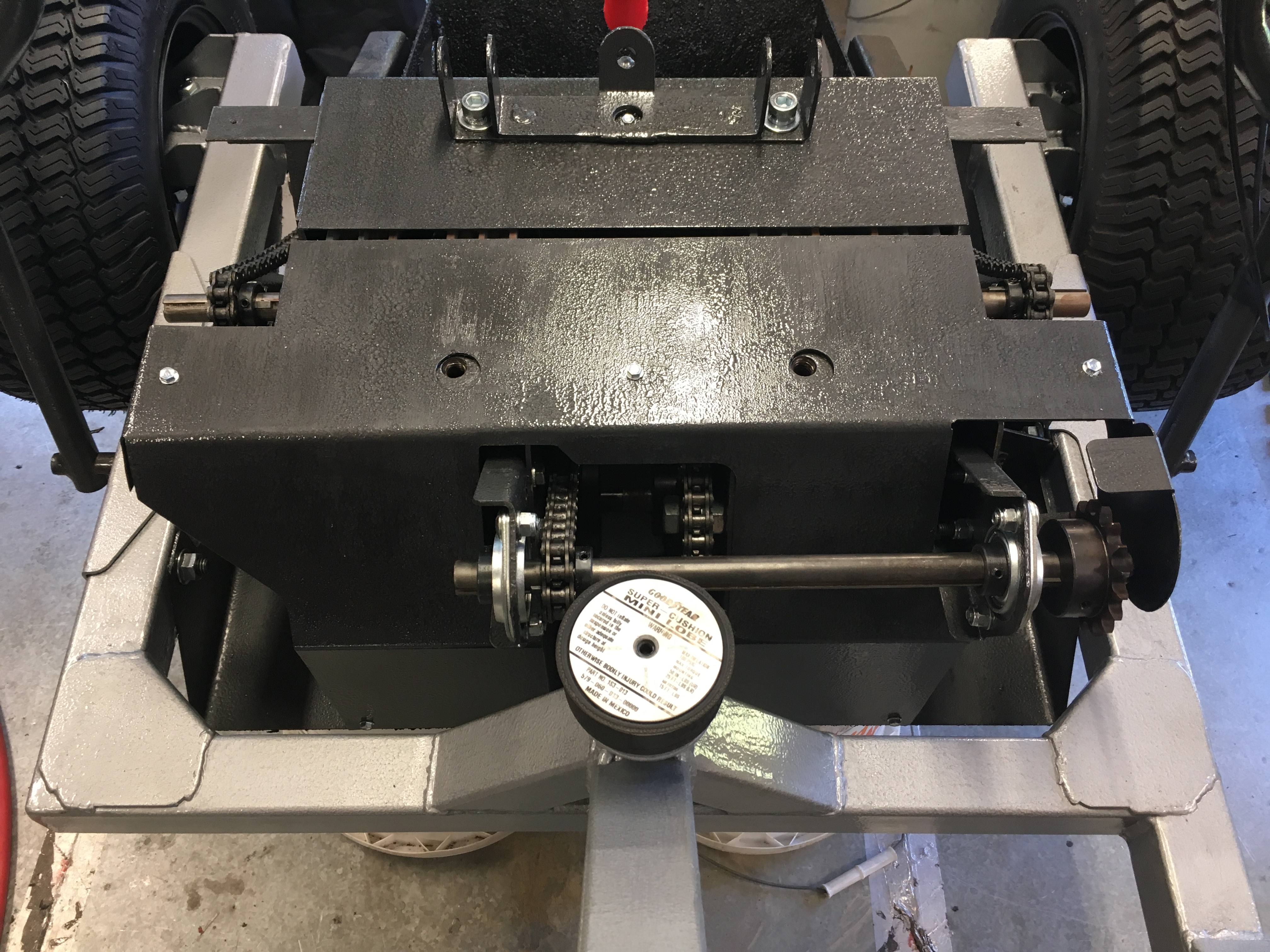

Command respect from The Big Chair, with a flip-down footrest and air-cushioned seat that's fit for a king. The Big Chair features a custom transmission with reverse, so you can put your own spin on the fun, but without the tracks to tear up your grass! Coupled with a powerful 6.5-hp engine and CVT, this 3-wheeled kart delivers smooth power. The huge tires and frame-less undercarriage provide plenty of ground clearance for on and off the street. Build yourself a bag holder, and be the first to show up on your golf course with a Big Chair!

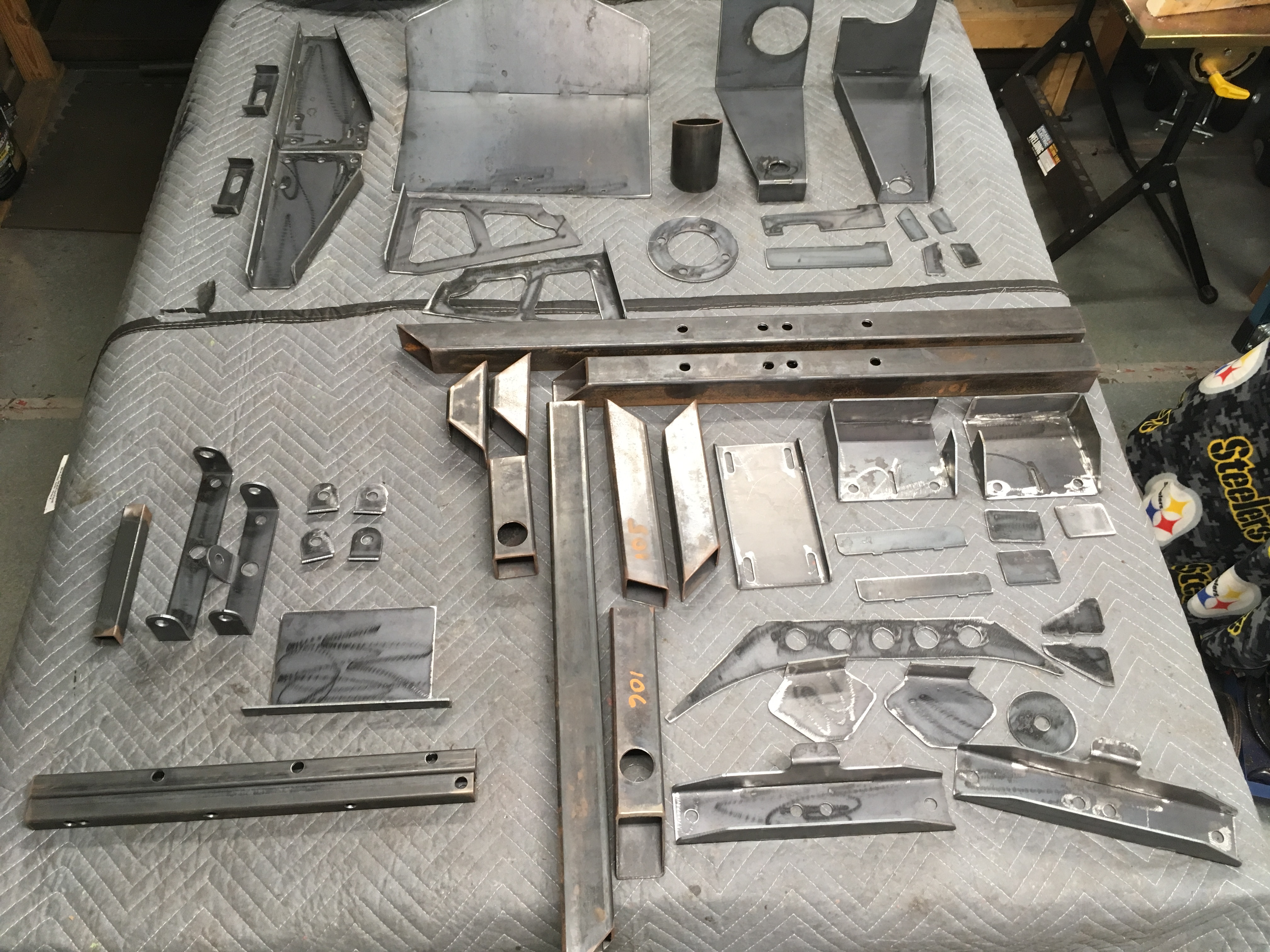

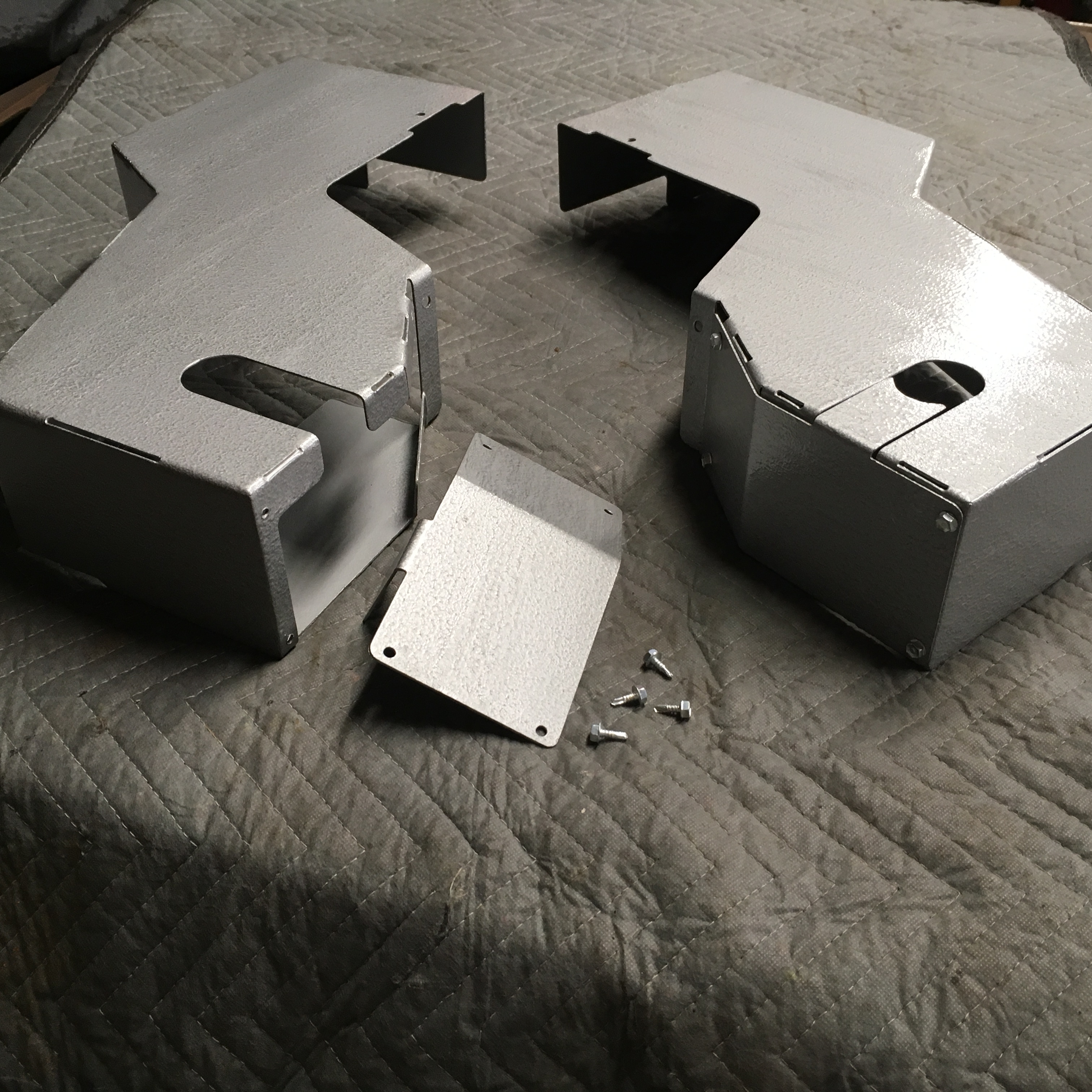

Now, you can build your own Big Chair using BaumBuilds.com exclusive build plans. The plans feature fabrication and assembly drawings, photos of each step, and helpful hints along the way. The build plans also include DXF flat pattern files of all sheet metal parts. Click on the Video button in the thumbnail above to watch the entertaining demonstration video. Your build challenge awaits you! That is, if you have a very particular set of skills...skills you have acquired in your workshop.

Features

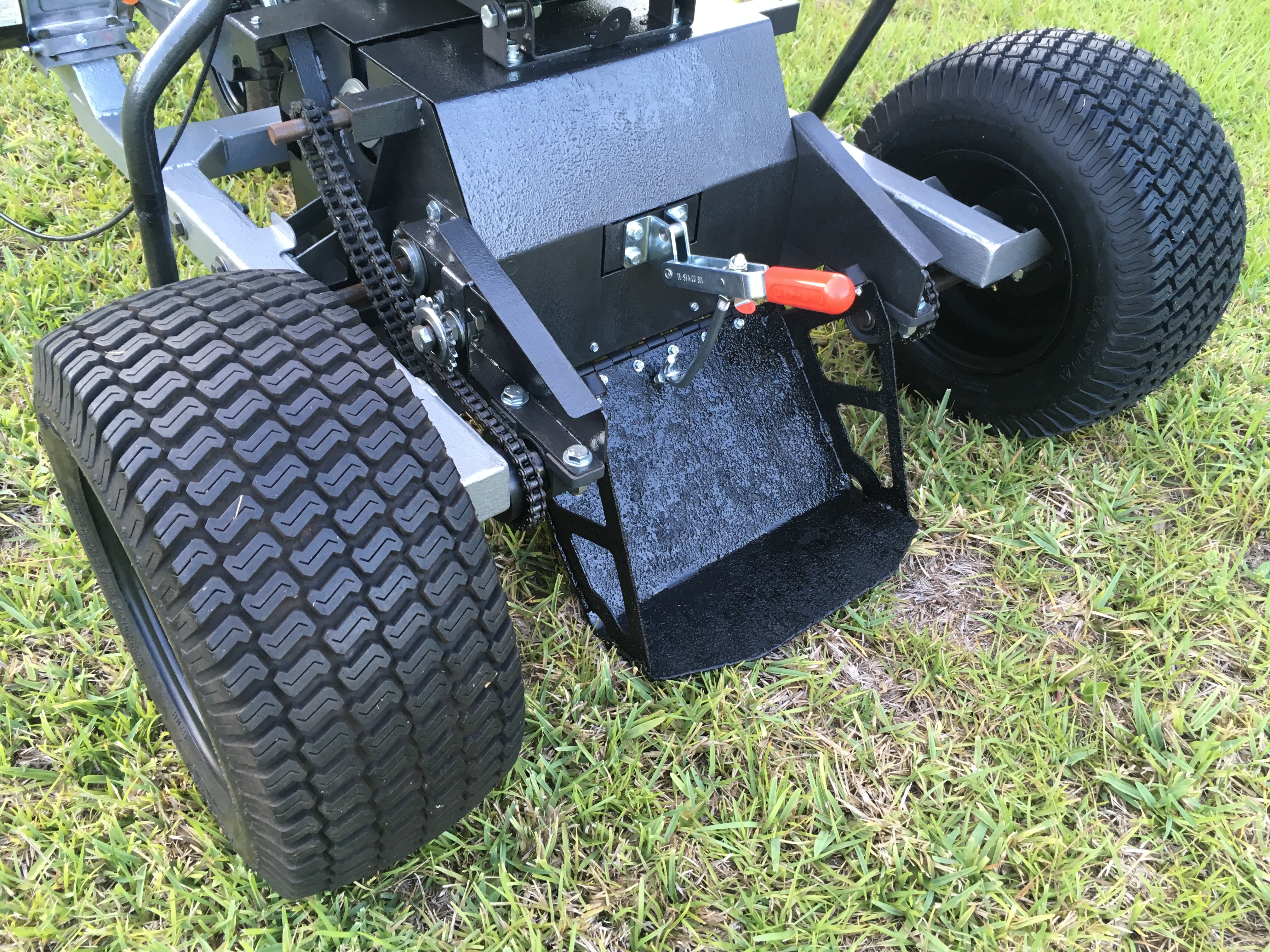

  • Flip-down footrest
  • Air-cushioned seat
  • Designed for on- and off-road use, where legal. Please be safe!
  • Welding required to build
  • Difficulty: Medium-Advanced

Specifications

  • Ground Clearance: 7 in
  • Height: 58 in
  • Length: 65 in

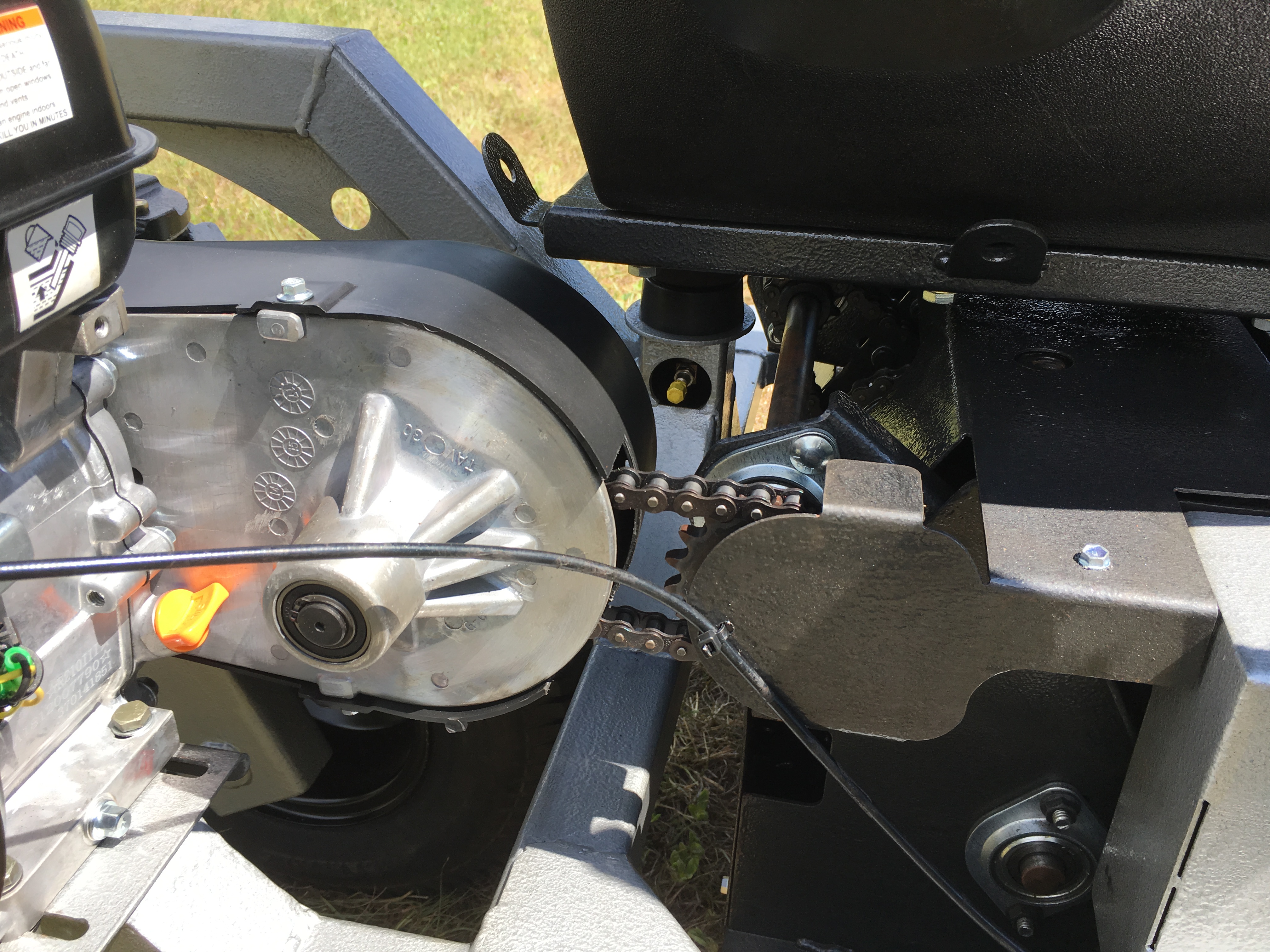

  • Propulsion: 6.5-hp gasoline engine with CVT transmission
  • Top Speed: up to 15 mph
  • Turning Radius: 3 ft
  • Weight: 360 lbs
  • Width: 47.5 in
